Die International Rule” ( Metre Rule )

25th America’s Cup 1983 Newport, USA

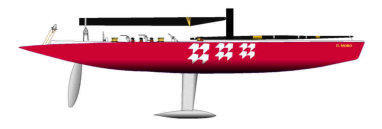

Yacht / Country IL MORO DI VENEZIA V / Italy Sail Number ITA-25

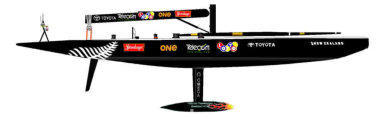

Yacht / Country BLACK MAGIC / NZL Sail Number NZL-32

29th AMERICA's CUP 1995 San Diego, USA

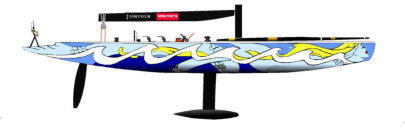

Yacht / Country YOUNG AMERICA (Mermaid) Sail Number USA-36

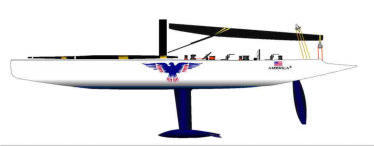

Yacht / Country AMERICA 3 (America Cubed) Sail Number USA-23

Yacht / Country NEW ZEALAND / NZL Sail Number NZL 60

30th AMERICA's CUP 2000 Auckland, New Zealand

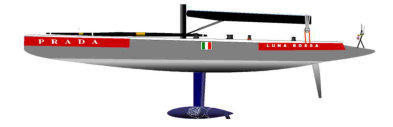

Yacht / Country LUNA ROSSA / Italy Sail Number ITA-45

28th America’s Cup 1992 San Diego USA

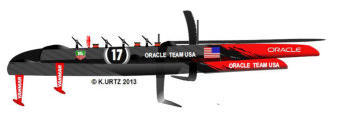

Country Yacht AC72 Oracle Team USA Sail Number : none

“The International Rule” ( Metre Rule )

chain girth skin girth  L = waterline length (LWL)  d = difference between skin girth and chain girth  S = sail area  F = freeboard ( area between the waterline and a specified deck edge )  2,37 = a mathematical constant

The International Rule differs between classes, the smallest called 5-m and the biggest has a 23-m rating. Best known is probably the 12-Metre Class sailing in 8 America’s Cups from 1958 to 1987. They followed as far less expensive yachts the impressing and costly J-Class of the 30’s . Their construction has been stopped by the Second World War. 12-m does not mean the length of a yacht in metres. The “m” is the term for a mathematical equitation only (a recommendation to use metric units.). The 12 Metres of the AC have a LWL of about 14 m, a total length of about 20 m and displacements of around 20 tons. The formula keeps a balance between the below parameters. A change of one of the figures requires the change of the others - in order not to exceed the number 12. The rule has been changed three times, the last version has following rule

Freeboard

“The International Rule” ( Metre Rule ) Around 1900 the European Yacht Clubs were looking for an international rating rule to assure that a yacht can race in the same class and under the same specifications in every country. Initiated by the British YRA (Yacht Racing Association ) and created in several international conferences ( final ones 1906 in London and Berlin ) the International Rule (Metre Rule ) has been ratified 1907 in Paris. On this occasion the international delegates formed the IYRU ( International Yacht Racing Union ) now replaced by the ISAF ( International Sailing Federation). As rating bodies the Lloyd’s Register (GB) the German Lloyd (D) and the Bureau Veritas (F) have been applied. At that time the USA has sent observers but continued with the Universal Rule based on a formula of N.Herreshoff.

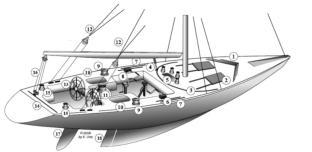

Outfit of a conventional 12 Metre America’s Cup yacht

wave-breaker 1 Wellenbrecher hatches / spinnaker-handling 2 Deckluken / Spinnaker-Handling. vang track 3 Traveller für den Baumniederholer boom vang 4 Baumniederholer pit for the mastman 5 Cockpit für den Mastmann. genoa coffee-grinder 6 Pedestral für die Genuawinschen. genoa-sheet tracks 7 Traveller für die Genua-Holepunkte mainsail coffee grinder 8 Pedestral für die Großwinsch genoa winches 9 Genuawinschen

pit for the tailers 10 Cockpit für die Genuatrimmer main-sheet winch 11 Winsch für die Großschot running back-stays 12 Bewegliche Backstagen double-wheels station 13 Doppesteuerstand mainsail -traveller 14 Traveller für die Großschot spinnaker winches 15 Winschen für den Spinnaker main-sheet winch 16 Großschotsysem rudder-blade 17 Ruderblatt trim-tab 18 Trimmklappe

More details about the 12m class tells the site of the famous American yacht designer Sparkman & Stephens: http://www.sparkmanstephens.com/yachtdesign/sailyachts/twelvemeter_designs.php

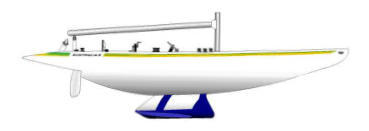

Yacht / Country : Australia II / Aus Sail Number : 12 KA 6

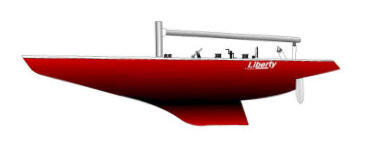

Yacht / Country : Liberty / USA Sail Number : 12 US 40

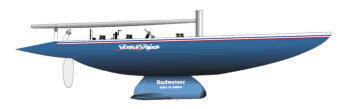

Yacht / Country Stars & Stripes ’87 /USA Sail Number 12 US 55

Yacht / Country Kookaburra III / Aus Sail Number 12 KA 15

26th AMERICA's CUP 1987

Fremantle , Australia

27th AMERICA's CUP 1988 San Diego, USA

Yacht / Country : “The Big Boat” / NZL Sail Number : K KZ - 1

Yacht / Country : Stars & Stripes / USA Sail Number : US - 1

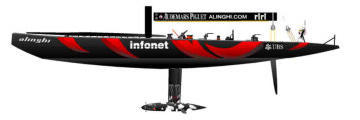

Yacht / Country : “ALINGHI “ / CH Sailnumber : SUI 64

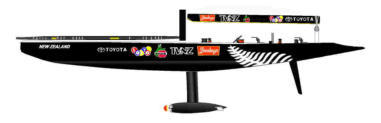

Yacht / Country : " NEW ZEALAND “, NZL Sailnumber : NZL - 82

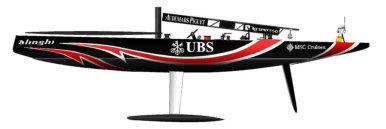

Yacht / Country : “ALINGHI “ / CH Sailnumber : SUI -100

32nd AMERICA's CUP2007 Valencia Spain

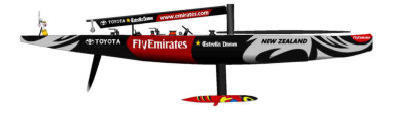

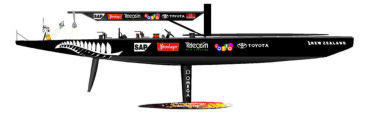

Yacht / Country New Zealand Sail Number : NZL- 92

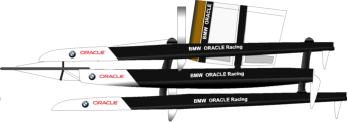

Country Yacht /: USA (former BOR 90) Sail Number : USA - 17

Yacht / Country : Alinghi 5 / CH Sail Number : SUI

Country Yacht / Boat#2 /NZL5 “AOTEAROA” Sail Number : none

31st America’s Cup 2003, Auckland , New Zealand
